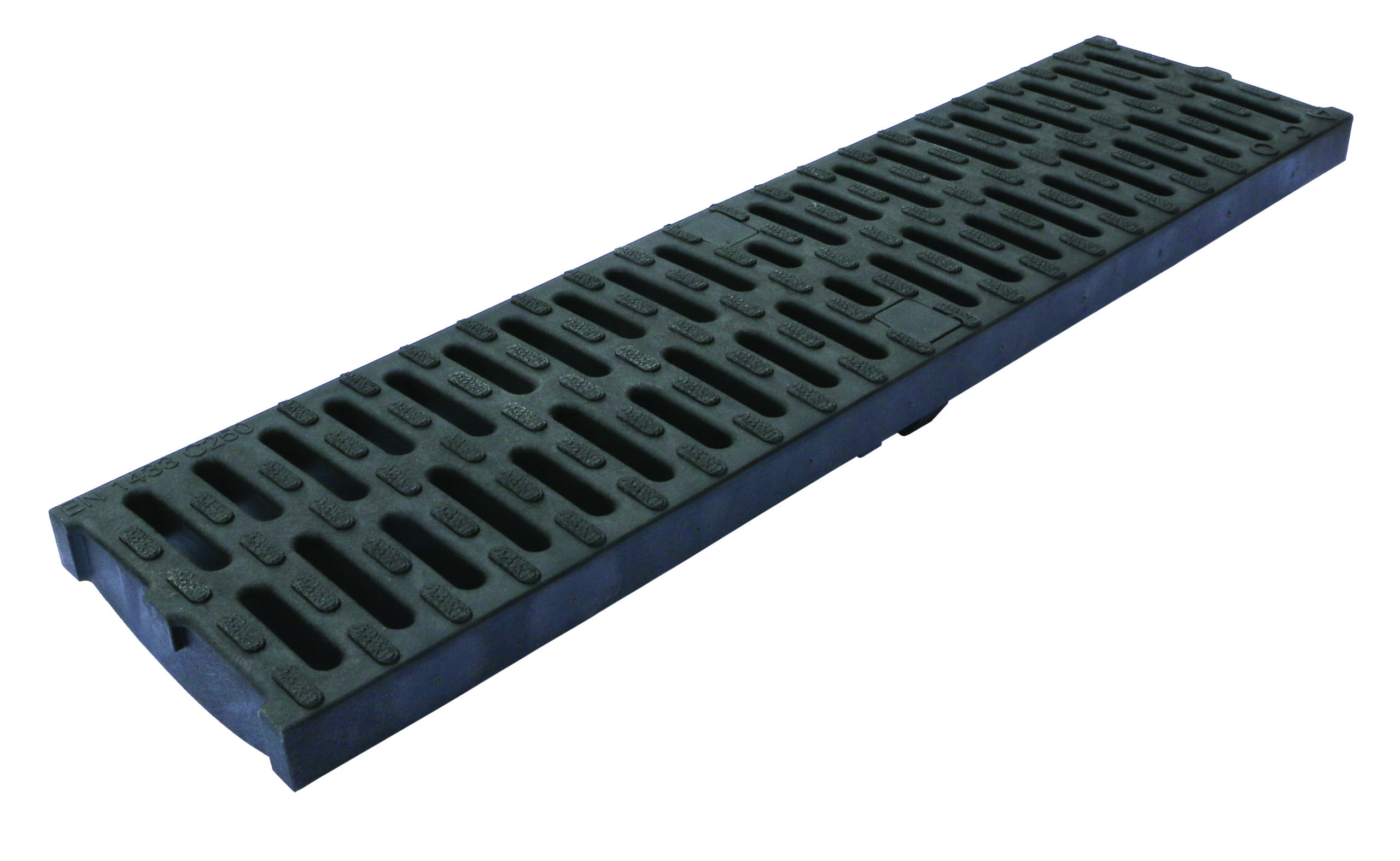

ACO 132720 MultiDrain® Heelguard™ Composite Black Grate 500mm
The ACO 132720 is a black composite channel grate designed for MultiDrain® MD systems installed in Load Class C250 environments. Manufactured as a lightweight 500mm unit, it combines long-term durability with high surface water intake while reducing manual handling risk on site. The ACO grating features 8mm Heelguard™ slots that ensure safe pedestrian passage, while integrated Drainlock™ and anti-shunt mechanisms provide secure locking and channel stability.
Specifications
| Product code | 132720 |
| Product name | Heelguard™ composite black 522DL |
| Product type | Composite grating |
| Length | 500mm |
| Overall width | 123mm |
| Overall depth | 21mm |
| Slot width | 8mm |
| Load class | C250 |
| Heelguard™ compliant | Yes |
| Anti-shunt feature | Yes |
| Intake area | 28,500mm²/m |
| Weight | 1.0kg |
| Compatibility | ACO MultiDrain® MD systems |
Key design features
This Composite Grating incorporates ACO’s Heelguard™ design with 8mm drainage slots suitable for pedestrian traffic areas and compliant with BS EN 1433 Heelguard™ requirements. The integrated Drainlock™ mechanism clips directly into the channel edge rail without requiring separate bolts or bars, helping simplify installation and maintenance procedures. An anti-shunt mechanism also helps minimise unwanted grate movement once installed, improving system durability and appearance over time.
Benefits
- Lightweight composite construction supports easier handling during installation.
- Heelguard™ slot design improves pedestrian safety in public areas.
- Drainlock™ fixing system allows fast and secure grate installation.
- Anti-shunt feature helps maintain grate positioning within the channel.
- Suitable for Load Class C250 drainage applications.
Applications
This ACO 132720 composite grate is specified for commercial and light-traffic drainage schemes requiring reliable surface water management and pedestrian-safe slot openings. Typical applications include public realm spaces, commercial developments, landscaping projects, and light vehicle environments using ACO MultiDrain® MD channel systems.
