Steel Lintels

Showing all 7 results

  • IG Steel Lintel, galvanised metal lintel offering high strength, corrosion protection, and dependable load performance.

    IG Box 100 Steel Lintel

    Price range: £41.20 through £77.15
    Select options
    This product has multiple variants. The options may be chosen on the product page

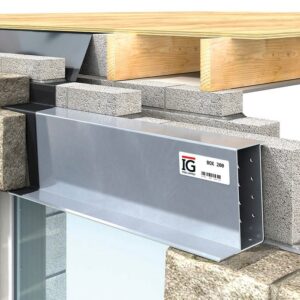

  • IG Box 200 lintel, galvanised metal lintel designed for heavy-duty openings with high load capacity and long-term corrosion protection.

    IG Box 200 Steel Lintel

    Price range: £79.46 through £460.32
    Select options
    This product has multiple variants. The options may be chosen on the product page

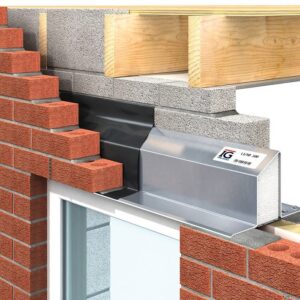

  • IG L1 HD 100 Lintel, heavy-duty galvanised lintel designed for 90–105 mm cavity walls with high load performance.

    IG L1/HD100 Steel Lintel

    Price range: £91.83 through £240.88
    Select options
    This product has multiple variants. The options may be chosen on the product page
  • IG L1 HD 150 Lintel, heavy-duty galvanised lintel for 150–165 mm cavity walls, offering high load capacity and corrosion resistance.

    IG L1/HD150 Steel Lintel

    Price range: £127.35 through £258.24
    Select options
    This product has multiple variants. The options may be chosen on the product page

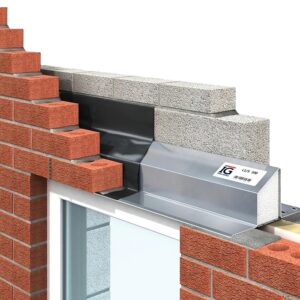

  • IG L1/S100 Steel Lintel

    IG L1/S100 Steel Lintel

    Price range: £38.74 through £438.73
    Select options
    This product has multiple variants. The options may be chosen on the product page

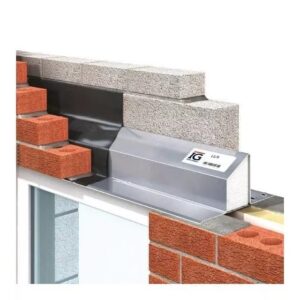

  • IG L1 S 150, galvanised lintel designed for 150–165 mm cavity walls, providing strong and durable load-bearing performance.

    IG L1/S150 Steel Lintel

    Price range: £61.26 through £332.15
    Select options
    This product has multiple variants. The options may be chosen on the product page
  • IG L10 Lintel, galvanised single leaf lintel designed for cavity wall construction, offering reliable strength and corrosion resistance.

    IG L10 Steel Lintel

    Price range: £25.44 through £97.60
    Select options
    This product has multiple variants. The options may be chosen on the product page

IG Cavity Wall, Box and Single Leaf Metal Lintels

Castings Drainage supplies IG steel lintels for sale, manufactured in galvanised mild steel for load-bearing openings in brickwork and blockwork. A steel lintel, also specified as a metal lintel, is profiled to sit across both leaves of a cavity wall, or as a box section within a single leaf. The range covers cavity widths of 90 to 105mm and 150 to 165mm, standard and heavy duty load ratings across both, and lengths from 900mm to 4800mm.

Steel Lintel Sizes and Load Capacities

Model Cavity width Height range Steel thickness Lengths Load capacity
L1/S100 90 to 105mm 87 to 217mm 1.6 to 3.2mm 900 to 4800mm Up to 27kN (3:1) and 22kN (19:1)
L1/S150 150 to 165mm 86 to 194mm 1.8 to 3.2mm 900 to 3000mm Up to 26kN (3:1) and 20kN (19:1)
L1/HD100 90 to 105mm 109 to 199mm 2.9 to 3.2mm 1500 to 3000mm Up to 40kN (3:1) and 35kN (19:1)
L1/HD150 150 to 165mm 126 to 194mm 2.9 to 3.2mm 1500 to 2400mm Up to 35kN (3:1) and 30kN (19:1)
Box 200 Single leaf 70 to 215mm 1.6 to 2.5mm 1500 to 4800mm 15 to 35kN UDL by model

All IG lintels listed here have an outer leaf of 102mm and an inner leaf of 100mm. The L1/S100 and L1/HD150 carry 30 minutes fire resistance.

Explore Our Range

  • Standard cavity lintels. The IG L1/S100 suits 90 to 105mm cavities in lengths to 4800mm, and the IG L1/S150 covers 150 to 165mm cavities.
  • Heavy duty cavity lintels. The IG L1/HD100 takes up to 40kN and the IG L1/HD150 up to 35kN, across the same two cavity widths.
  • Box lintels. The IG Box 100 has a fully welded box section for standard load brickwork and blockwork openings. The IG Box 200 is rated for heavy duty masonry openings in lengths to 4800mm.
  • Single leaf lintels. The IG L10 supports the outer leaf of a cavity wall, and can be supplied without a top bend where the build needs it.

Key Benefits

  • Galvanised finish resists corrosion in normal masonry conditions, with no site painting required.
  • Standard and heavy duty ratings are available across both cavity widths, so the load can be matched without altering the cavity.
  • Lengths from 900mm to 4800mm cover single door openings through to wide commercial spans.
  • Even load distribution across the masonry keeps the wall aligned above the opening.
Explore More

Compare against the Naylor concrete range, or see the full lintels hub for both materials side by side.

Contact Us

For load span data on a specific opening or a bulk project order, get in touch with the team.
