The ACO Hex Drainage Channel and galvanised grating (A15) is a lightweight, durable drainage solution for patios, driveways, and pedestrian areas. Supplied in a 1-metre length and manufactured from recycled polypropylene, it provides reliable surface water control for light domestic traffic.
19313 Aco Hexdrain Channel Galv Grating A15 1mtr Long
£10.95 excl VAT £10.95
Product Code: 19313

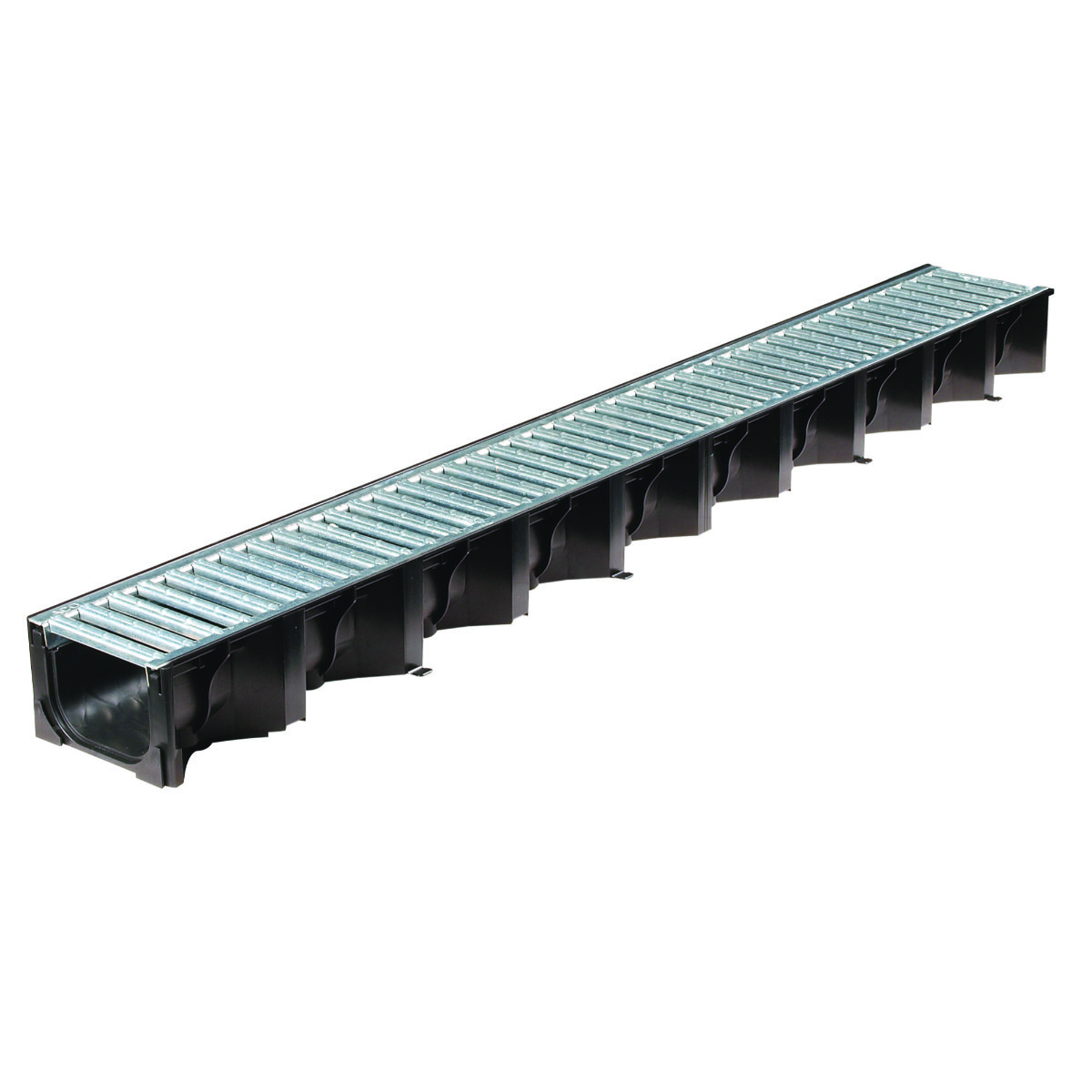

ACO HexDrain Channel with Galvanised Steel Grating A15 1000mm – ACO 19313
The ACO HexDrain Channel provides a lightweight surface water drainage solution for domestic projects. ACO manufactures the channel from recycled polypropylene and supplies it with a galvanised steel grating. Each 1 metre section clips easily to the next, while eight vertical outlet positions give installers flexibility when connecting to underground drainage.
Specifications
| Product code | 19313 |
| Product type | ACO HexDrain channel with galvanised steel grating |
| Channel material | Recycled polypropylene |
| Grating material | Galvanised steel |
| Dimensions | 1000 x 125 x 80mm |
| Weight | 1.9kg |
| Load class | A15 |
| Standard | BS EN 1433:2002 |
| Vertical outlet positions | 8 |
Key Design Features
The ACO HexDrain Galvanised channel includes eight vertical outlet positions, giving installers more choice when planning the drainage connection. Channels clip together to create longer runs, and the built-in cutting guide makes it easy to divide a 1 metre section into two 500mm lengths. A friction-fit anti-shunt design helps keep the grating securely in position.
Benefits
- Lightweight channel makes handling and installation easier.
- Eight outlet positions provide flexibility when planning drainage connections.
- Channels clip together for quick installation.
- Can be cut into 500mm sections when required.
- Galvanised steel grating provides a durable surface finish.
- A15 rated and certified to BS EN 1433:2002.
Applications

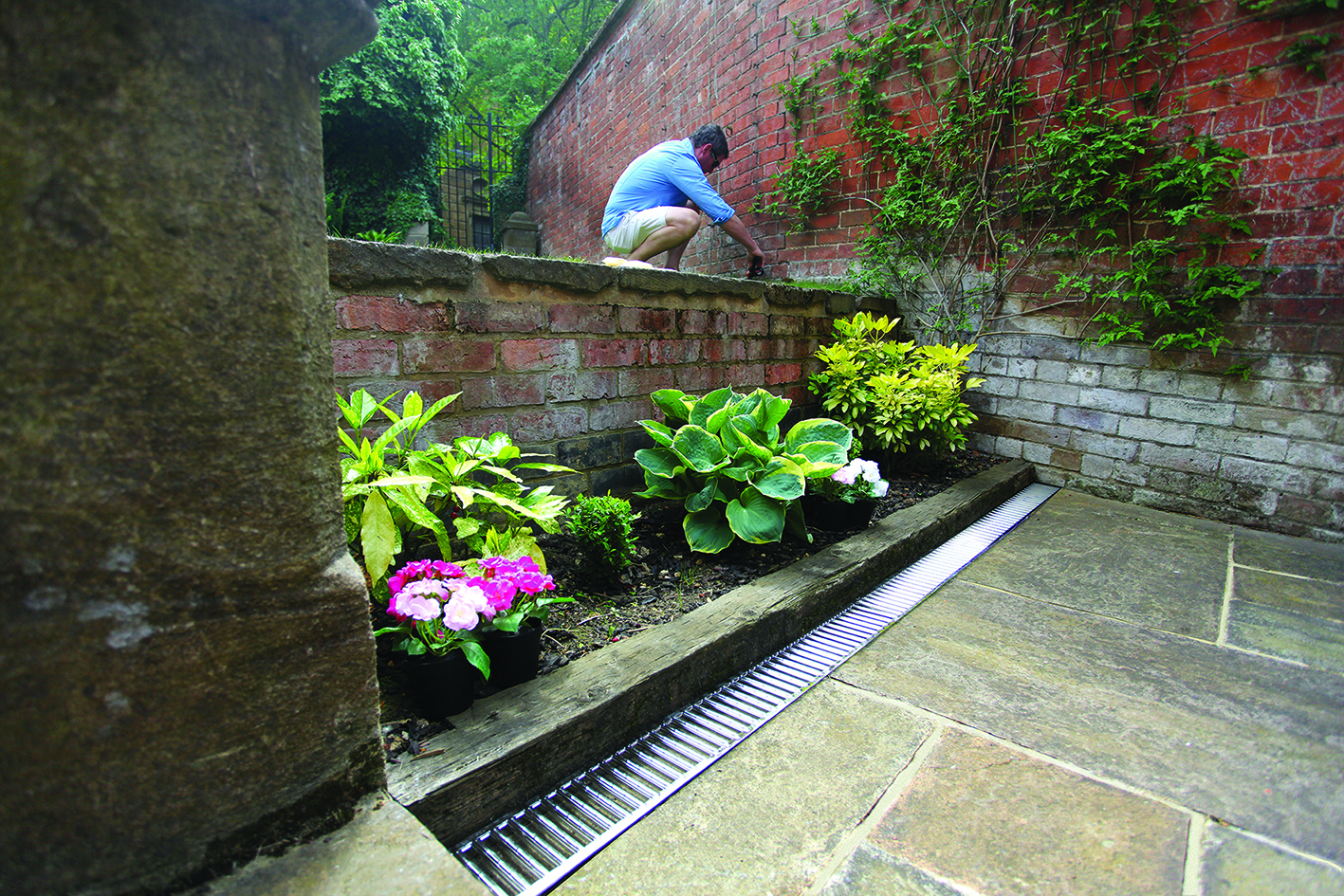

Suitable for garage thresholds, patios, paths, pedestrian areas and block paving. The A15 load class is suitable for pedestrians, cycles and light domestic vehicles, but not heavy domestic vehicles such as 4x4s or SUVs.
Explore More
Browse the full ACO HexDrain range for channels, sumps, end caps and accessories. For channel runs that need to turn through 90° or connect to underground drainage, the ACO HexDrain Corner Unit with Galvanised Grating & Vertical Outlet 399100 is a compatible option.
Downloads
ACOHexDrain.pdf
