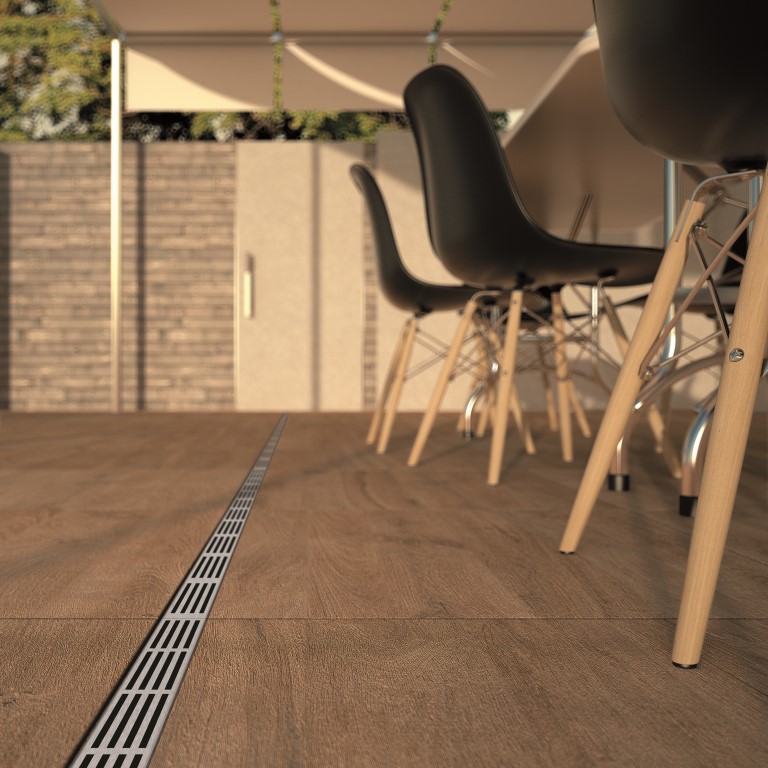

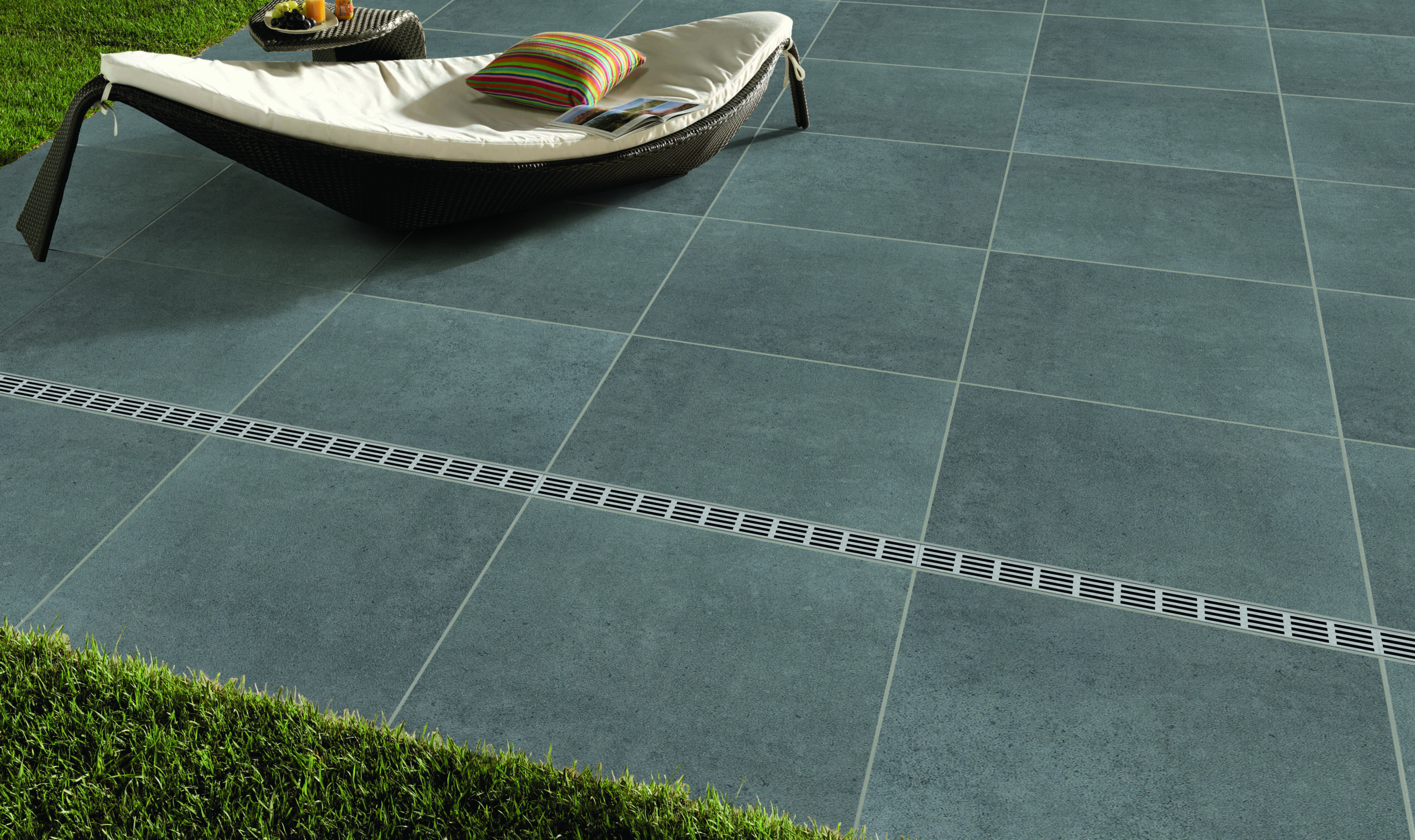

The ACO Threshold Drain is ideally suited for patio doors, level thresholds, and main residential entrances. This door threshold drainage channel efficiently manages surface water while supporting smooth, accessible transitions in both new build and retrofit applications.
19000 ACO Threshold Drain Silver Aluminium Grating 1mtr
Manufactured from extruded plastic with a silver aluminium grating, ACO Threshold Drain eliminates water ponding at house entrances, or around your patio.
The discreet system has a width of 60mm and is available in 1m lengths.
£29.00 excl VAT £29.00
Product Code: 19000
Door Threshold Drainage Channel with Silver Aluminium Grating – ACO 19000
The ACO Threshold Drain (ACO 19000) delivers a discreet, low-profile system for managing surface water around residential entrances. Engineered to support UK accessibility standards, this door threshold drainage channel combines reliable performance with a clean, contemporary finish. It connects effortlessly to 110mm soakaways and integrates neatly into paving or threshold details for a seamless finish. Fabricated from durable polypropylene and fitted with a silver aluminium Heelguard™ grating, it ensures long-term strength, corrosion resistance, and a refined aesthetic.
Specifications
| Product code | ACO 19000 |
| Channel length | 1000mm |
| Channel material | Extruded polypropylene |
| Grating material | Silver aluminium Heelguard grating |
| Outlet compatibility | 110mm drainage connection |
| Load classification | A15 |
| Accessibility compliance | Part M (England & Wales), Section 4 (Scotland) |
Key design features
This ACO doorway drain and threshold drain uses a slimline profile to sit within paving and threshold details. The aluminium Heelguard grating helps prevent small heel penetration while allowing surface water to pass through the channel. The system connects directly to 110mm underground drainage. This supports efficient water management at level access entrances.
Benefits
- Slim profile supports discreet installation at door thresholds.
- Aluminium grating provides corrosion resistance and durability.
- Designed to support accessible entrance detailing.
- Connects directly to standard 110mm drainage systems.
- Suitable for both retrofit and new build installations.
Applications
Explore More
Explore the full ACO Threshold Drainage Channel range, including compatible bottom connectors and accessories to complete your threshold drainage setup.
Contact Us
Unsure which ACO Threshold drain suits your project best? Speak with our expert team for tailored product advice, technical guidance and fast UK-wide delivery.
Downloads
ACO Threshold Drain brochure.pdf
