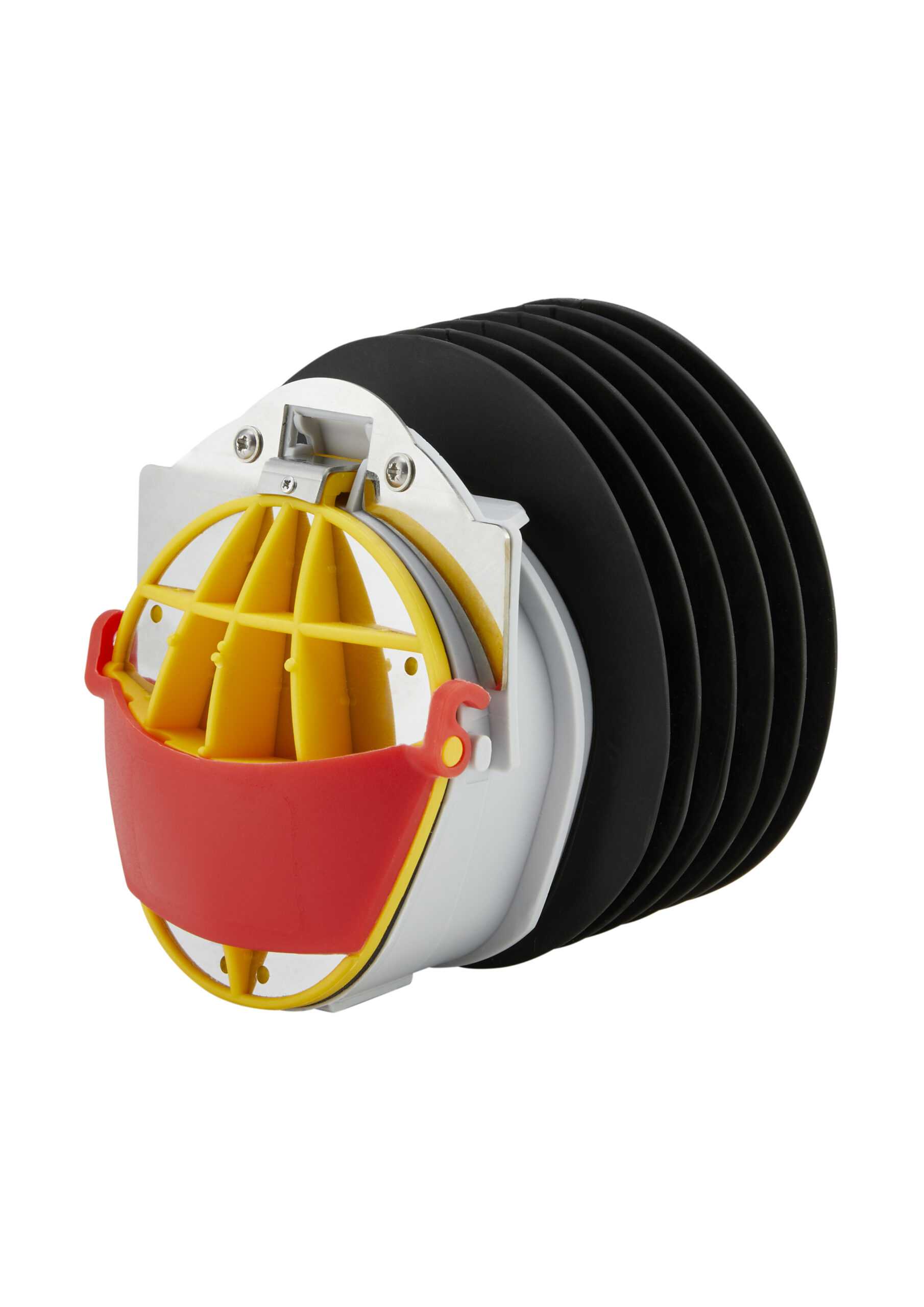

Fernco NRV100 Non-Return Valve 110mm
Non-return valves allow sewer or surface water materials to freely flow in the direction of the systems mains but block backflow of those materials in the opposite direction in instances, such as, flooding.
£71.10 excl VAT £71.10
Fernco NRV100 Non-Return Valve 110mm WRc Approved Backflow Prevention
The Fernco Non Return Valve provides a reliable solution for protecting drainage systems against backflow, sewer surges, and flood-related contamination. Built for foul drainage and wastewater treatment, this compact valve allows water to flow freely in one direction while automatically blocking reverse flow from blockages, heavy rainfall, or rising sewer levels. Quick to install and maintenance-free, the Non Return Valve fits directly into existing pipework, making it an excellent retrofit option for domestic, commercial, or infrastructure projects. It safeguards property and reduces the risk of environmental hazards caused by flooding or contaminated waste.
Benefits
- Backflow Protection: Prevents sewage and wastewater from flowing back into homes and buildings
- No Specialist Tools: Push-fit installation in minutes, ideal for DN100 (97–106mm) pipe inlets
- Rodent Control: Stainless steel flap deters rats and pests from entering through drains
- Maintenance-Free: Long-life design requires no ongoing adjustment or servicing
- Trusted Performance: Fully certified to BS EN 13564-1:2002 and BS EN 681-1:1996
Features
- Product Type: Non Return Valve
- Brand: Fernco
- Pipe Compatibility: DN100 (97–106mm) pipe inlets
- Material: Polypropylene body with stainless steel flap
- Installation: Fits directly into existing pipe inlets or manholes
- Certification: WRc Approved™, BS EN 13564-1:2002, BS EN 681-1:1996
Applications
Suitable for foul water systems in domestic, commercial, and municipal networks. The Fernco non return valve offers discreet, low-cost protection against flooding and backflow in toilets, drains, and gullies.
Browse the Range
Browse our full range of Fernco couplings/ valves by clicking below:
Fernco Adaptor | Fernco Adaptor Coupling
Contact us
For expert product advice and recommendations contact our team today.
FAQs
What does a non return valve do?
It lets wastewater flow one way only. The flap opens with the flow and closes against it, so water from a surcharged sewer cannot come back up the pipe into the building.
Where is a non return valve fitted?
In line on the 110mm underground pipe between the last inspection chamber and the sewer, in a chamber so the flap can be inspected and cleaned.
Does a non return valve need maintenance?
The flap should be checked and cleared of debris at least once a year, which is why the valve is fitted where it can be reached.
Data Sheet
Fernco-Non-Return-Valve-Datasheet
