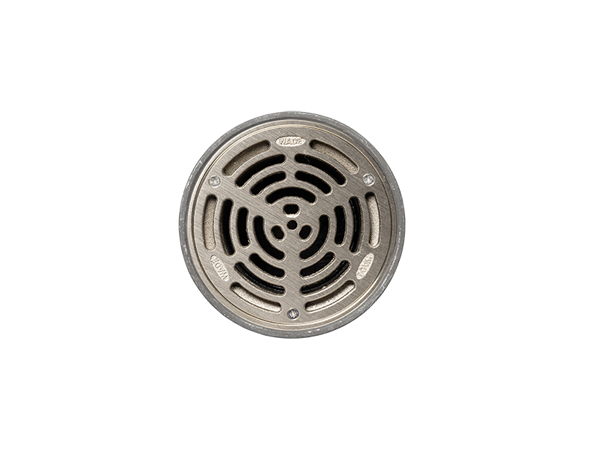

Wade K2302 Nickel Bronze 176mm Vari-Level Dia Grate
The Wade K2302 is a 176mm diameter vari-level grating designed for internal drainage applications where a durable and accessible finish is required. This Round Drain Cover combines a nickel bronze grating with a cast iron frame to provide a practical solution for floor drainage. The Wade K2302 is suitable for installations where consistent performance and compatibility with floor finishes such as vinyl are required.

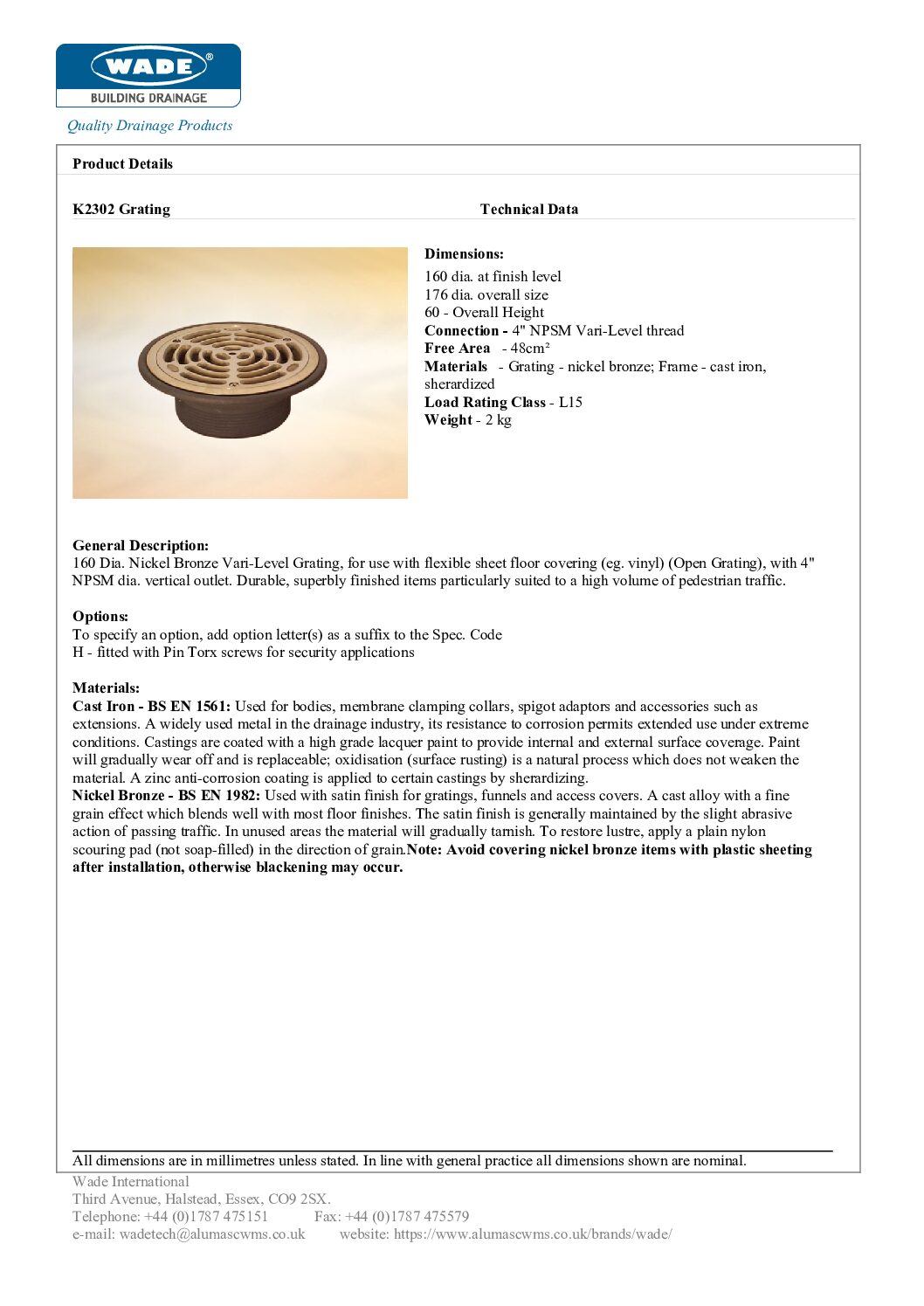

Specifications
| Product type |
Round Drain Cover |
| Product code |
Wade K2302 |
| Grating size |
160mm diameter |
| Overall size |
176mm diameter |
| Overall height |
60mm |
| Connection |
4″ NPSM vari level thread |
| Material |
Nickel bronze grating with cast iron frame |
| Load class |
L15 |
| Free area |
48cm² |
Key design features
The Wade K2302 incorporates a vari-level design to allow adjustment during installation. The open grating format supports effective drainage while maintaining accessibility. The combination of nickel bronze and cast iron provides a durable construction suitable for internal environments.
Benefits
- Nickel bronze grating provides durability and resistance to wear.
- Cast iron frame supports structural stability within the floor.
- Vari-level adjustment allows accurate alignment with finished floor levels.
- Open grating design supports efficient surface water intake.
- Suitable for areas with regular pedestrian traffic.
Applications
The Wade K2302 is used in internal drainage systems within commercial buildings, public areas, and service environments. These Drain Covers for Outside sheltered areas and internal spaces are commonly installed in floors finished with vinyl or similar materials where a reliable drainage point is required. The Wade K2302 supports consistent drainage performance in areas exposed to regular foot traffic.
Explore more
Explore the full range of wade nickel bronze grates to find additional drainage solutions for internal applications.
Contact us
For help selecting the correct Wade K2302 or confirming suitability for your project, contact the team for technical advice and UK wide supply.
