Naylor S4 High Spec 100X100 Concrete Lintel

Description

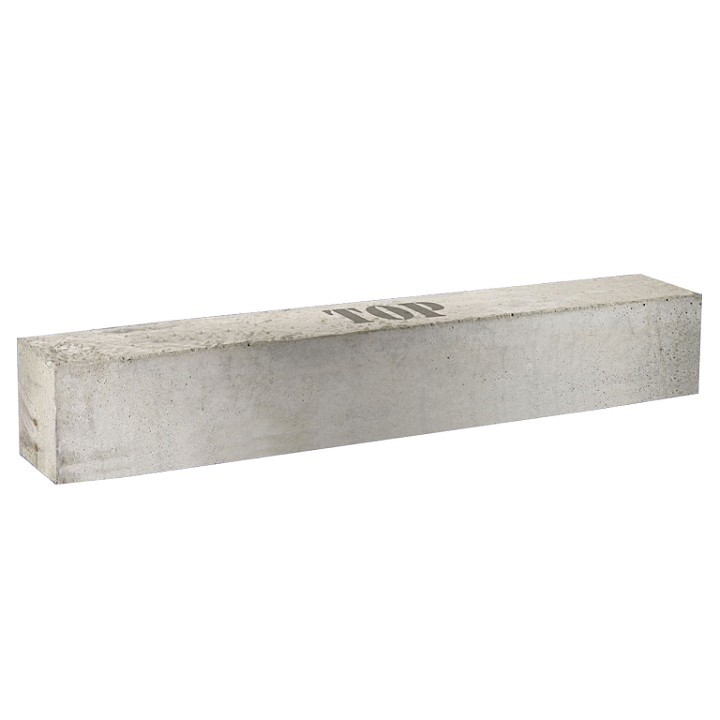

Naylor S4 100 x 100 High Spec Concrete Lintel

The Naylor S4 Concrete Lintel is a compact yet durable option within the Naylor Hi-Spec Range, designed for strength, precision, and easy installation. With its 100 x 100 mm profile, the Naylor S4 Lintel provides reliable support for brickwork and blockwork in both residential and light commercial projects. Manufactured from reinforced concrete, it offers consistent load-bearing performance and long-term resistance to cracking or deformation. The standard extruded finish is ideal for plastered applications, ensuring a neat and professional surface that’s ready for finishing.

Benefits

• Compact Strength: The 100 x 100 mm design offers dependable support for smaller spans.
• Durable Construction: Reinforced concrete ensures long-lasting performance.
• Easy to Install: Lightweight and reversible for straightforward handling on site.
• Fire Resistant: 30-minute protection for added safety and compliance.
• Precision Made: Smooth finish and consistent dimensions for a professional result.

Features

• Range: Naylor S4 – Hi-Spec Range
• Size: 100 mm (W) × 100 mm (H)
• Length Options: 1200 mm – 2400 mm
• Weight: 23 kg/m
• Unfactored Load (700 mm Clear Span): 15.77 kN/m
• Finish: Standard (extruded concrete suitable for plastered applications)
• Foundation Use: Yes
• Fire Resistance: 30 minutes

Applications

The Naylor S4 Concrete Lintel is ideal for supporting doorways, windows, and small structural openings in residential and light commercial buildings. Its compact section provides reliable strength for shorter spans where a standard load capacity is required.

Explore More

Explore other models in our High Spec lintel Range, including R6, R7, R8 and R9 lintels, designed for higher load requirements and larger openings.
