SML Below Ground Cast Iron 30deg Bend

Description

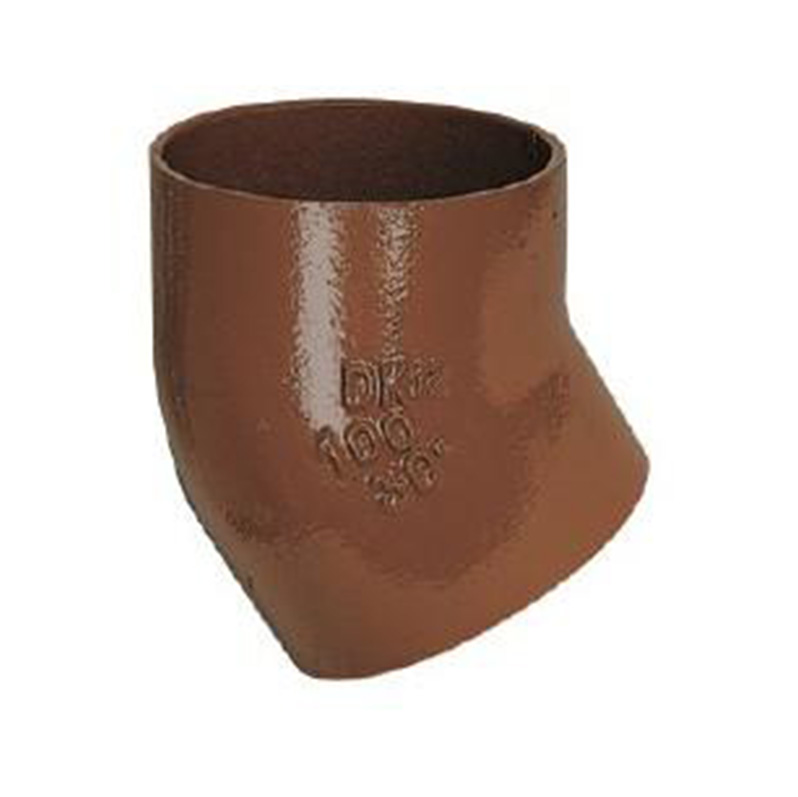

SML Below Ground Cast Iron 30° Bend

The SML Below Ground Cast Iron 30° Bend is a precision-engineered fitting designed for smooth directional change within underground drainage systems. Manufactured from high-quality grey cast iron to EN-GJL-150, this bend is part of the trusted SML socketless drainage system, fully compliant with BS EN 877 and certified by BBA and Kitemark. Durable, fire-safe, and corrosion-resistant, it ensures long-term reliability across commercial, industrial, and residential drainage applications.

Benefits

• Reliable Performance: Constructed from EN-GJL-150 grey cast iron for excellent strength and impact resistance.
• Corrosion Resistant: Internal and external epoxy coatings (min. 60 µm) protect against water, chemicals, and abrasion.
• Socketless System: Uses ductile or stainless steel twin-screw couplings for easy, tool-free jointing.
• Low Maintenance: Smooth bore design reduces deposits and cleaning frequency.
• Fire Resistant: Non-combustible (A1 fire classification) for safety and compliance.

Features

• Range: SML Below Ground Drainage System
• Material: Grey cast iron (EN-GJL-150)
• Angle: 30 degrees
• Coating: Internal and external epoxy coating (min. 60 µm)
• Connection Type: Socketless joint with ductile or stainless steel couplings
• Certifications: CE Marked, BBA Certified, and Kitemark approved to BS EN 877 and ISO 6594
• Fire Rating: Non-combustible, A1 classification

Applications

The SML Below Ground Cast Iron 30° Bend is used for precise directional changes in underground drainage systems. Designed to integrate seamlessly with SML pipes and fittings, it ensures secure, watertight connections in soil, waste, and Underground Drainage Bends applications. This fitting provides long-lasting strength and low maintenance in all types of Bends In Underground Drainage installations.

Explore More

Explore our complete selection of SML pipes and fittings from Castings Drainage for robust, high-performance below-ground drainage solutions.

Contact Us

For installation advice, specification support, or delivery details, contact Castings Drainage for expert guidance and nationwide service.
