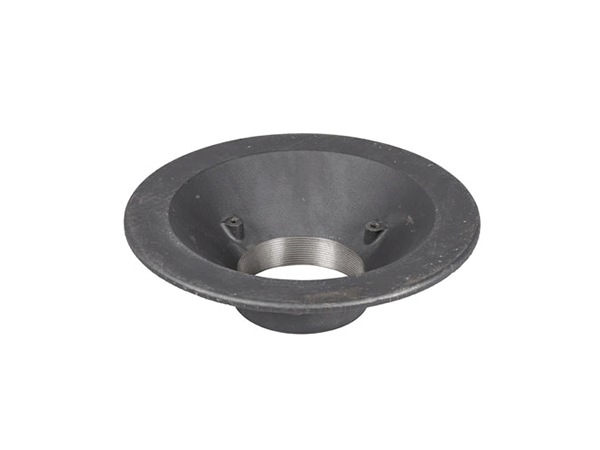

Wade D1002 Trapped Body
Cast Iron D10 – D12 series Vari-Level Non-Trapped Body for use with Bituminous Membrane, with 2″ BSP dia. vertical outlet
£54.55 excl VAT £54.55
Product Code: D1002
Description
Wade D1002 Trapped Body
Features
- Compatible with all Vari-Level Gratings and Rodding Eyes
- Membrane clamping collar allows for up to 30mm thickness of damp proof membrane
- Suitable for use with Asphalt
- Body free area 19cm²
- Materials – Cast iron, lacquered
- D10 – 12 Series Vari-Level gullies have a wide flange to enable effective clamping of a bituminous damp-proof membrane, or asphalt / composition flooring.
Explore the Range
The membrane clamping collar must be ordered separately (linked below):
Wade C.D10 Clamp
Explore the full range of Wade Bodies by clicking below:
Wade Gully Bodies.
Contact Us
For help confirming compatibility or selecting the correct product for your project, contact our team via our contact page for expert advice and reliable UK-wide supply.
Data Sheet
Wade D1002 Data Sheet
