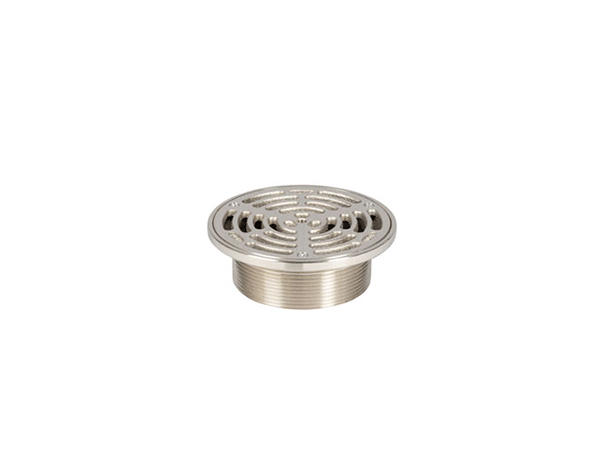

The Wade K2101 is a 135mm diameter nickel bronze grating designed for internal drainage applications. This 135mm Dia Vari-Level Grating provides a durable and consistent drainage solution for floor finishes where access and performance are required. The Wade K2101 is suited to areas with regular pedestrian traffic and is designed to integrate with finished floor surfaces such as tiles, terrazzo, and resin.

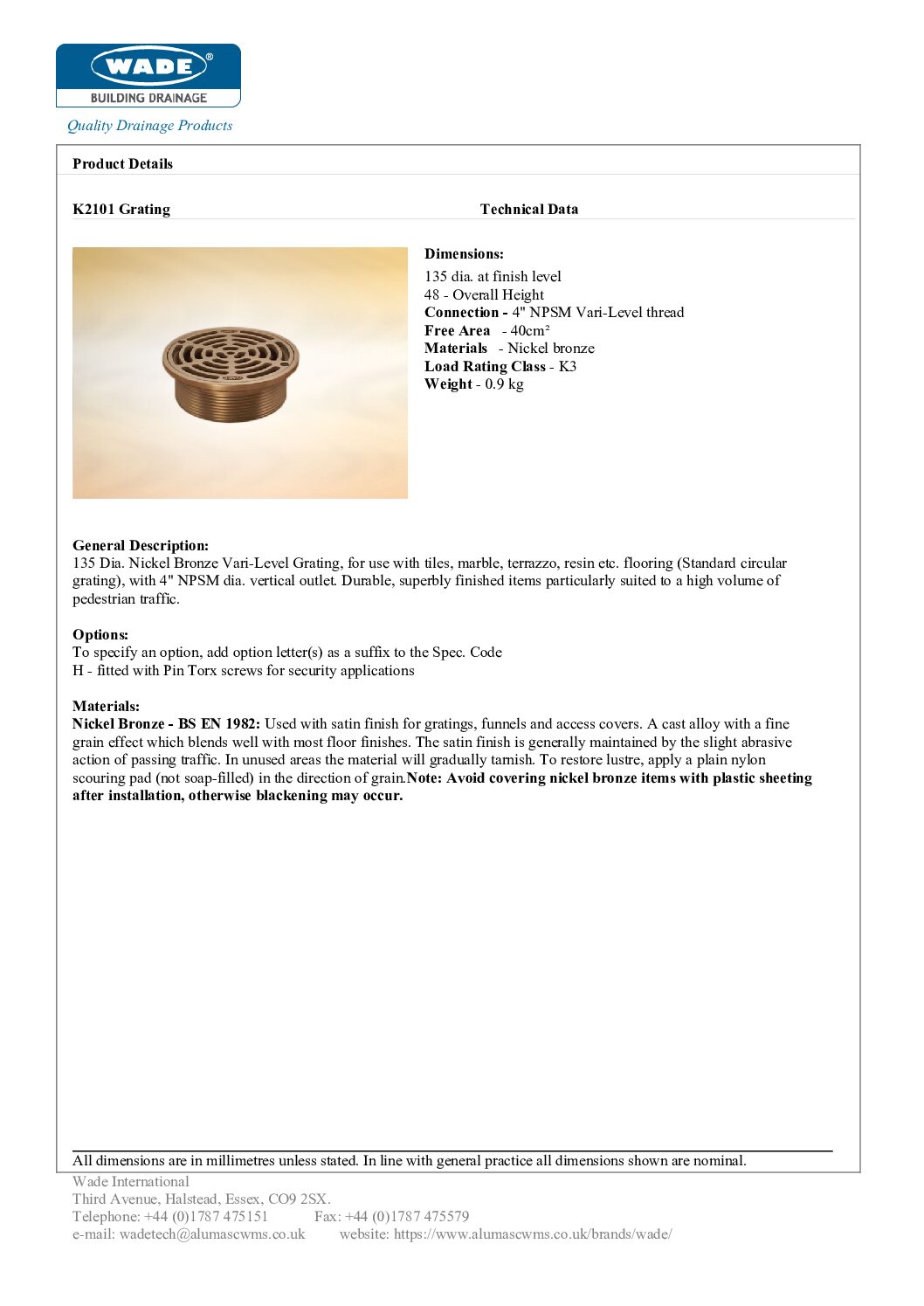

Specifications
| Product type |
Nickel Bronze Vari-Level Grating |
| Product code |
Wade K2101 |
| Size |
135mm diameter |
| Overall height |
48mm |
| Connection |
4″ NPSM vari level thread |
| Material |
Nickel bronze |
| Load class |
K3 |
| Free area |
40cm² |
| Weight |
0.9kg |
Key design features
The Wade K2101 uses a vari level threaded connection to allow adjustment during installation. The circular grating design provides consistent surface water intake. The nickel bronze construction offers a durable finish suited to visible internal environments.
Benefits
- Nickel bronze construction provides durability in high footfall areas.
- Vari level adjustment allows accurate alignment with finished floor levels.
- Circular grating supports effective drainage performance.
- Suitable for internal pedestrian environments.
- Provides accessible drainage point for inspection and maintenance.
Applications
The Wade K2101 is used in internal drainage systems within commercial buildings, public areas, and service spaces. This 135mm Dia Vari-Level Grating is commonly installed in tiled, terrazzo, or resin floors where a consistent finish and reliable drainage are required. The Wade K2101 is suited to areas exposed to regular pedestrian traffic.
Explore more
Explore the full range of nickel bronze grates to find additional drainage solutions for internal applications.
Contact us
For help selecting the correct grating or confirming suitability for your project, contact the team for technical advice and UK wide supply.
