Wrekin B125 Manhole Covers
Made from highly durable ductile iron and fully compliant with rigorous specification standards, here are some of its many features:
- Its low weight means it is easy to lift and handle
- Its strength makes it extremely durable
- The manhole covers can be operated by a single person
- Industry-standard cover-lifting safety keyways increase health and safety
- UKAS accredited by a 3rd party to 70+ PSRV offering high skid resistance
- The single labyrinth seal prevents odour escapes and water ingress
- Fully compliant with BS EN 124:2015 and carries the BSI kitemark
Price range: £34.68 through £259.08
Description

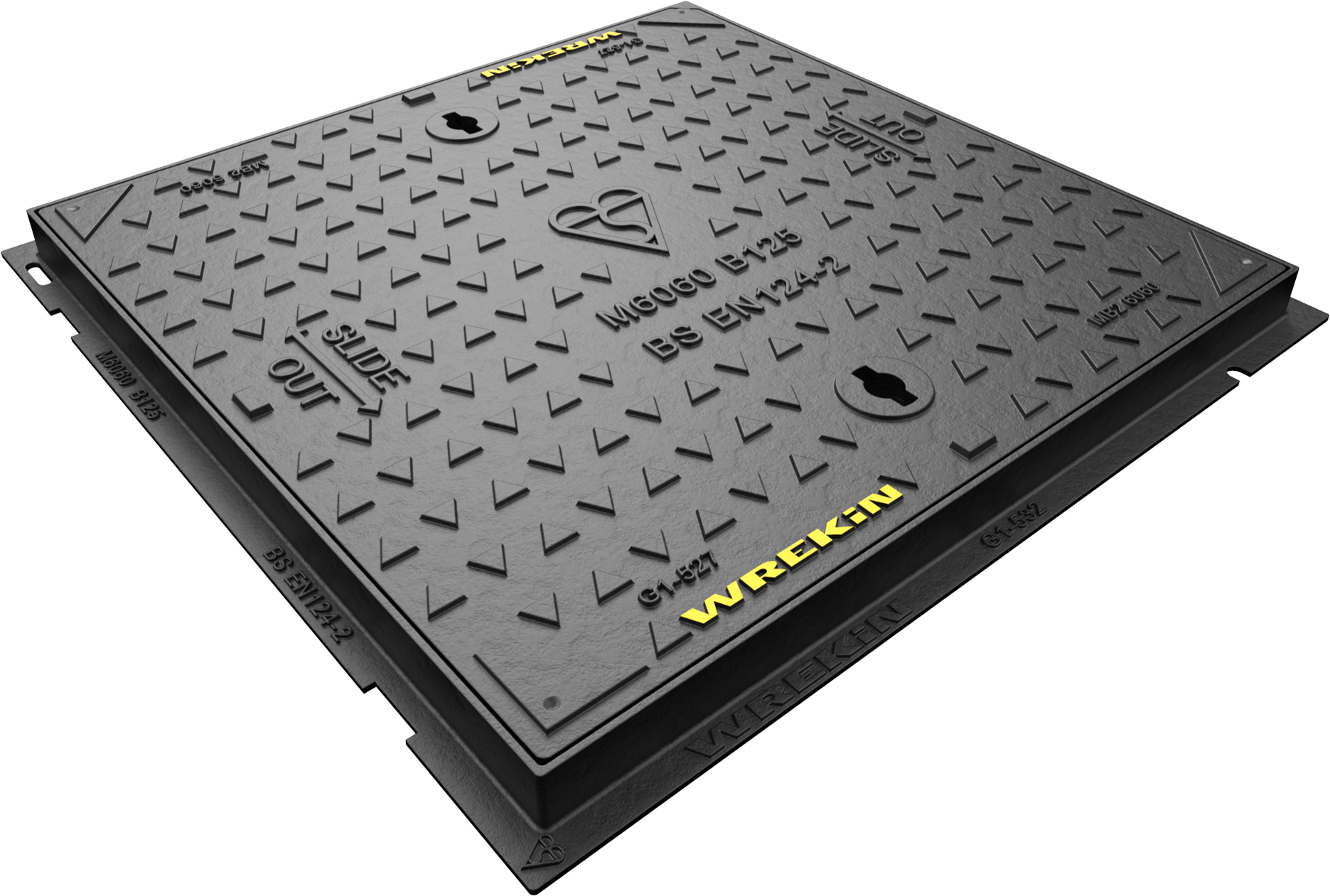

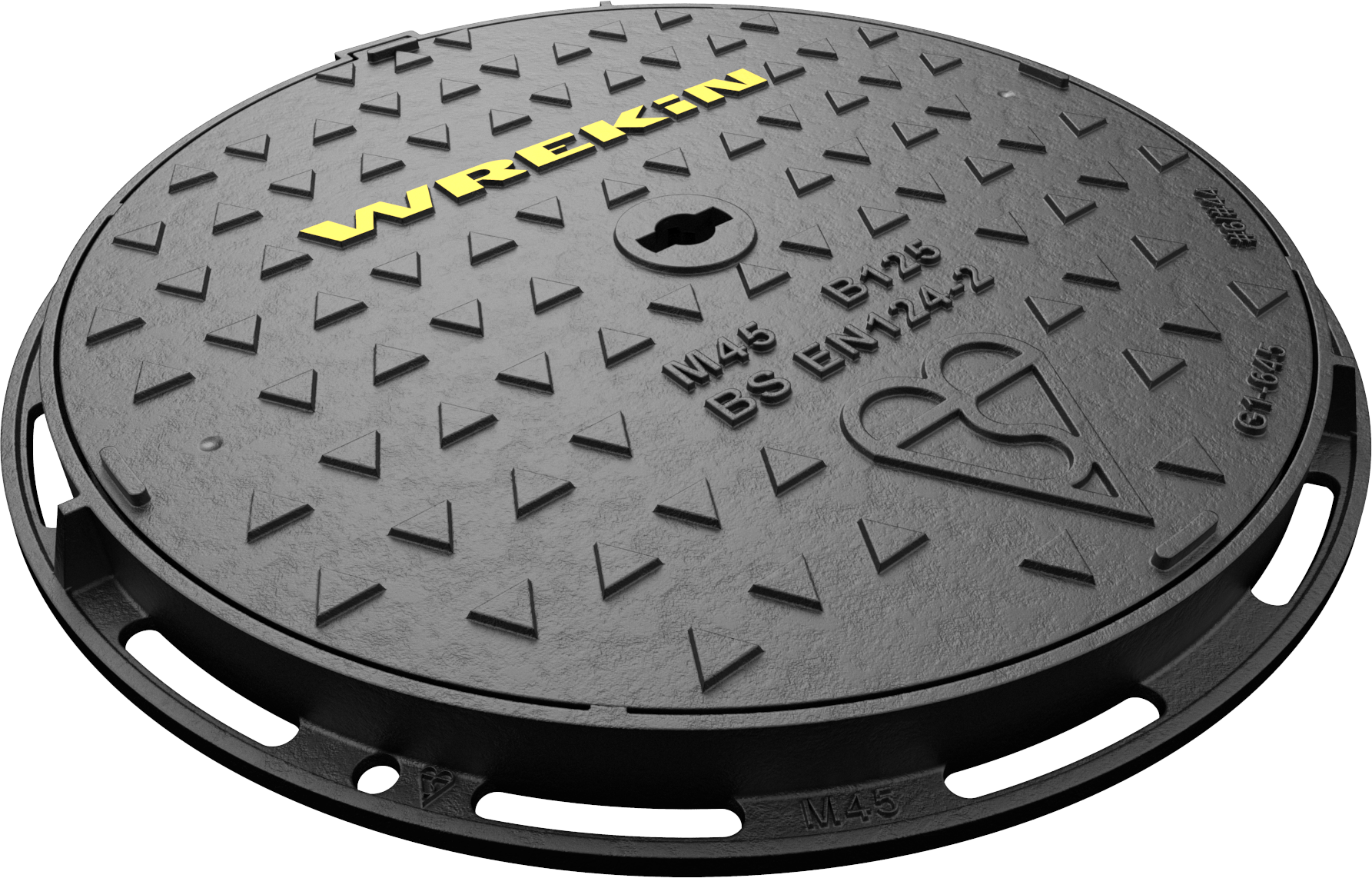

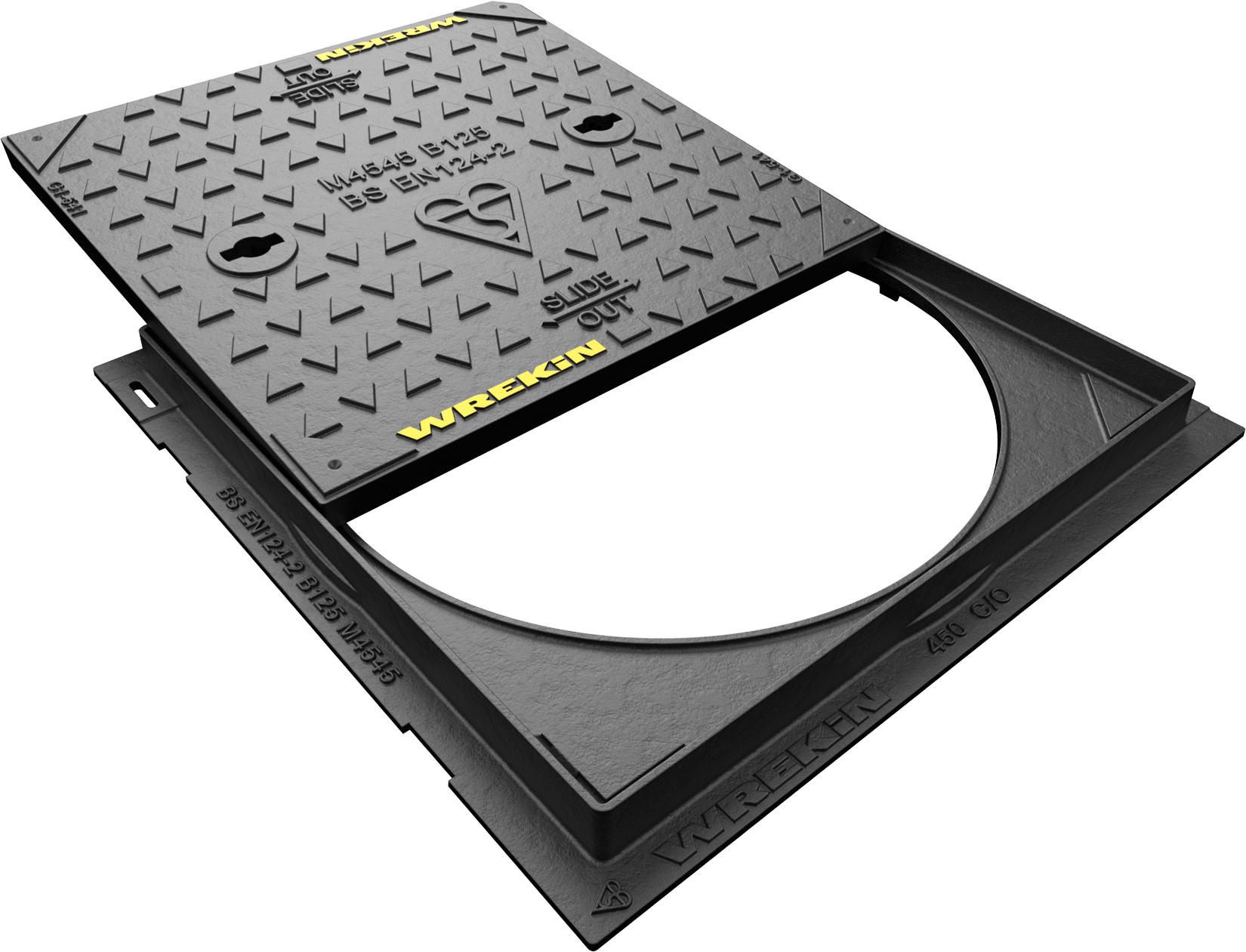

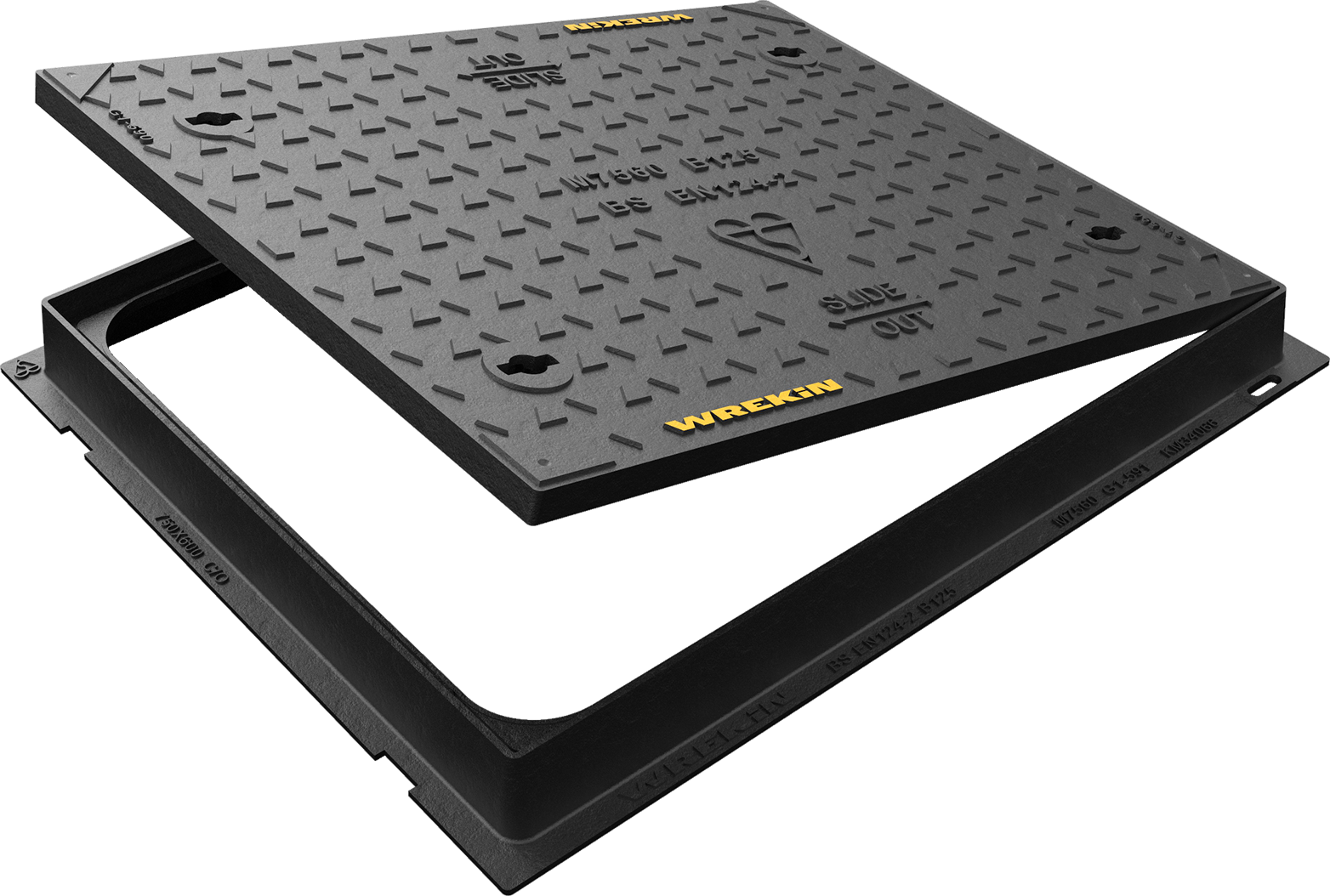

Safeseal Ductile Iron B125 Manhole Cover and Frame
The Safeseal ductile iron access cover range provides controlled access to underground services in pedestrian and light vehicle areas. These B125 Manhole Covers are intended for footways and trafficked surfaces subject to occasional car loading. Each B125 Cover And Frame is supplied as a complete unit designed for installation in accordance with BS EN 124-2 Group 2 requirements.
Key design features
The cover and frame use a labyrinth seating profile to help limit surface water ingress and odour escape. Indexed geometry supports correct alignment during installation. Centralised lifting points allow controlled removal for inspection and maintenance.
Specifications
| Load class |
B125
|
| Standard |
BS EN 124-2
|
| Group classification |
Group 2
|
| Primary material |
Ductile iron
|
| Assembly type |
Cover and frame
|
| Product range |
Safeseal
|
| Frame shapes |
Square, circular, square to round
|
| Product codes |
DMS1B2/3030/K, DMS1B2/4545/K, DMS1B2/45D, DMS1B2/45D/KSQR, DMS1B3/4545/K, DMS1B3/6045/K,
DMS1B3/6060/K, DMS1B2/6045/K, DMS1B2/6060/K, DMS1B2/60D/K, DMS1B3/60D/K, DMS1B2/6767/K,
DMS1B3/7560/K, DMS1B2/7560/K, DMS1B2/7575/K, DMS1B3/9060/K, DMS1B3/9090/K, DMS1B2/9060/K
|
Benefits
Ductile iron construction provides stable performance under pedestrian and light vehicle loading. Secure seating helps reduce movement after installation. The complete assembly supports straightforward fitting in new works and replacement situations. These B125 Manhole Covers are suitable where higher load ratings are not required. The B125 Cover And Frame format allows reliable access over the service life.
Applications
Suitable for footpaths, pedestrian zones, private driveways, and parking areas with intermittent vehicle access. Commonly installed around commercial premises and landscaped environments where B125 Manhole Covers are specified.
Explore more
Browse the full range of ductile iron covers, frames and gratings across different load classes and configurations.
Contact us
For technical support or help selecting a suitable B125 Cover And Frame, contact the team for guidance and UK-wide supply.
Additional information
| Sizes | 300x300x40mm, 450mm Dia x 40mm, 450mm Dia x 40mm Sq-Rnd, 450x450x75mm, 450x450x40mm, 600x450x40mm, 600x600x40mm, 600mm Dia, 600mm Dia Sq Frame, 600x450x75mm, 600x600x75mm, 675x675x50mm, 750x600x75mm, 750x600x40mm, 750x750x50mm, 900x600x75mm, 900x900x75mm, 900x600x40mm |
|---|
