Wrekin Multigrate Composite gully grating 450x510x80mm
Stolen gully grates are a severe problem for authorities responsible for roads and highways. Multigrate provides a high-quality, safe, easy-to-install, temporary fix to keep roads open until a permanent solution can be installed.
£119.34 excl VAT £119.34
Description
MultiGrate™ 250kN

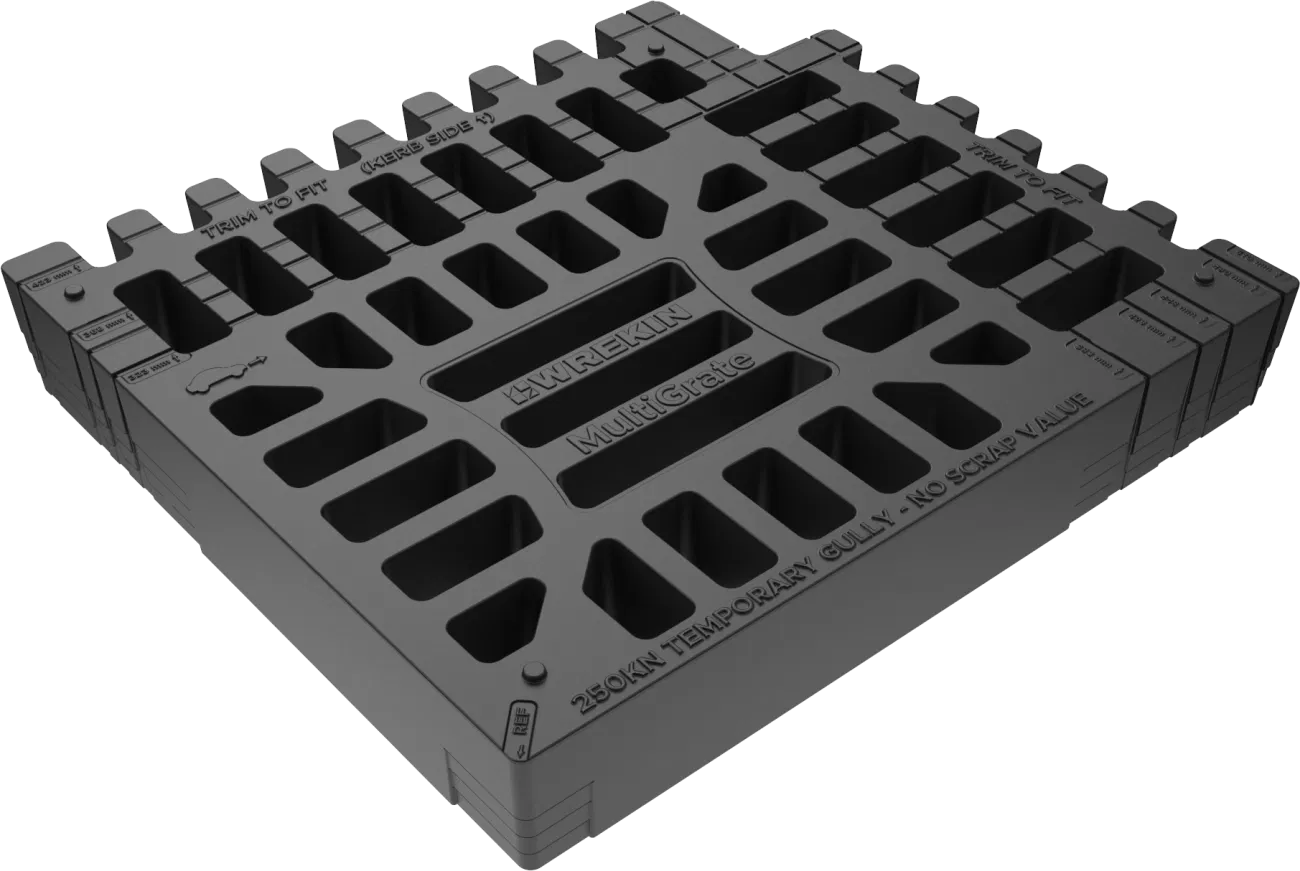

The Wrekin Multigrate is a composite gully grating designed as a rapid, temporary replacement for stolen or damaged gully grates. Manufactured from plastic, it provides a practical solution that can be installed on the first maintenance visit, reducing traffic disruption and repeat call-outs. This Composite Gully Grating is designed to be cut on site using standard tools, allowing it to be trimmed accurately to suit a wide range of gully openings while maintaining effective surface water drainage.
Specifications
| Product code |
PG/MULTIGRATE/250KN
|
| Category |
Gully grate
|
| Primary material |
Plastic
|
| Overall frame size |
510 × 450 mm
|
| Frame depth |
80 mm
|
| Waterway area |
721 cm²
|
| Maximum loading |
250 kN
|
| Flanges |
3
|
| Common cut sizes |
450 × 450, 450 × 370
|
Key design features
- Composite construction – Manufactured from plastic to provide a lightweight, non-metal alternative with no scrap value.
- On-site cut-to-fit design – Built-in cutting guides allow the grate to be trimmed using standard tools for accurate fitting.
- Temporary replacement solution – Designed to act as a secure temporary gully grate until a permanent unit is installed.
- High load capacity – Suitable for applications requiring loadings up to 250 kN.
- Reusable format – Can be removed and reused on future installations where required.
Applications
Suitable for temporary replacement of stolen or damaged gully grates on highways and trafficked areas. Commonly used by maintenance teams to restore drainage functionality and surface safety on the first visit. Appropriate for Group 3 locations where a fast-fit, cut-to-size Composite Gully Grating is required. The Wrekin Multigrate helps reduce traffic disruption and maintenance time while awaiting permanent replacement.
Contact us
For help confirming compatibility contact the team for support.
