Wrekin Pressed Steel Solid Top Access Cover And Frame 10tn
Our pressed mild steel access covers and frames are available in a comprehensive range of sizes and loadings. Hot-dipped galvanising to BS EN IS0 1461 provides corrosion resistance. This range of covers provides a cost-effective solution for infrequent and slow-moving traffic situations. The raised surface pattern is designed to avoid water pooling.
Price range: £26.52 through £33.66
Description

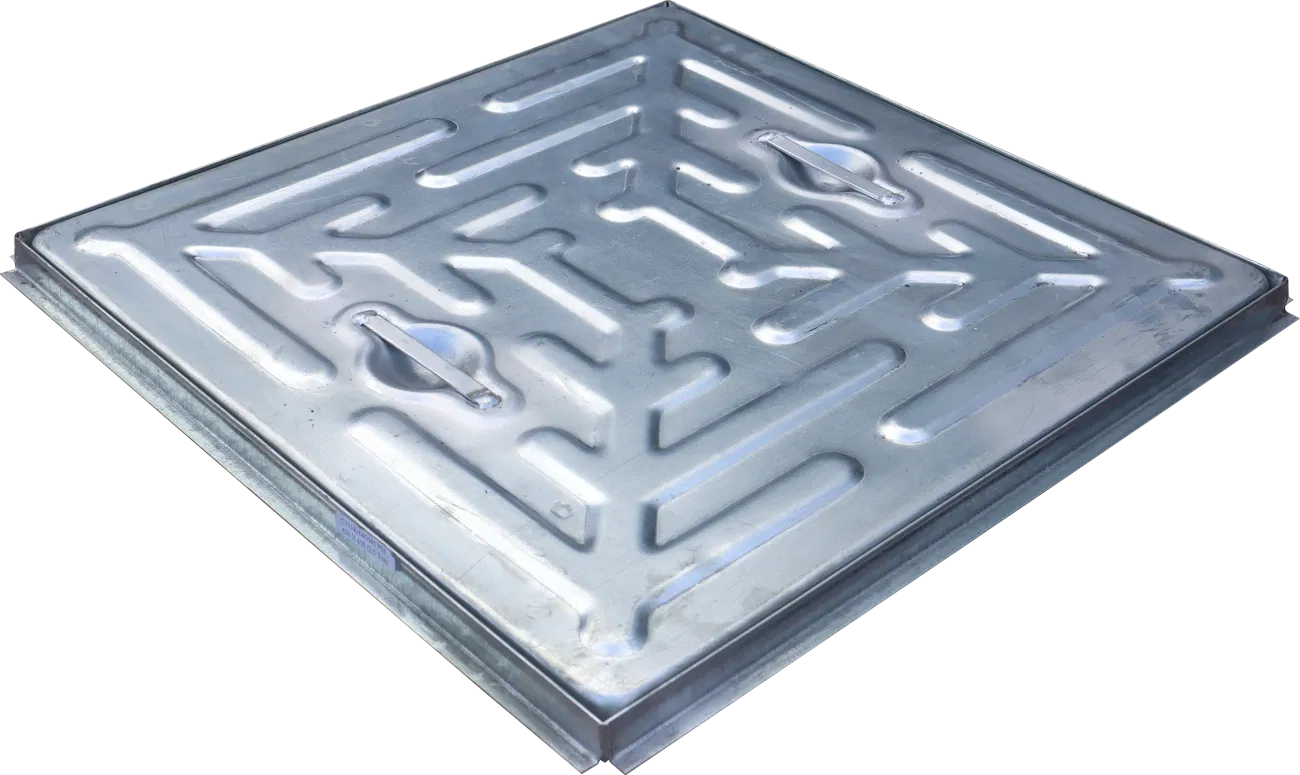

Wrekin Pressed Steel Solid Top Access Cover And Frame 10tn
The Wrekin C211M is a pressed steel solid top access cover and frame designed for light to medium duty applications. Manufactured from steel, it provides controlled access to underground services where a compact, low-profile solution is required. This Access Cover 10tn gross laden vehicle weight rating makes it suitable for commercial and service environments subject to occasional vehicle loading. The solid top design supports a continuous surface finish, while the single seal arrangement offers basic protection against water ingress and odour release.
Specifications
| Primary material |
Pressed steel
|
| Category |
Access cover
|
| Flanges |
4
|
| Gross laden vehicle weight |
10 tn
|
| Load duty |
Light to medium duty
|
| Slow moving wheel load |
2.5 tn
|
| Seal type |
Single seal
|
| Available sizes |
600 x 600, 600 x 450
|
| Product codes |
C211M/060060PSF, C211M/060045PSF
|
Pressed Corner Cover
The notch-less, die-drawn corners on our pressed tops provide a continuous surface seal, giving the following benefits:
- No sharp exposed edges.
- No cut exposed edges improve corrosion resistance.
- Better for avoiding water ingress and odour egress
Single seal products
The design of our single seal on these solid top access covers is achieved through an uninterrupted labyrinth between the cover and the frame.
By applying grease to the labyrinth of the frame, the seal’s performance improves, providing a mild to moderate defence against the release of gases and the infiltration of water at standard atmospheric pressure.
For increased sealing capacity our double sealed version should be considered.
Contact Us
For help confirming compatibility or selecting the correct Wrekin C211M, contact the team for technical advice and reliable UK-wide supply.
Additional information
| Sizes | 600 x 600mm, 600 x 450mm |
|---|
