Wrekin Pressed Steel Solid Top Access Cover And Frame D/Seal Locked 10tn
Our pressed mild steel access covers and frames are available in a comprehensive range of sizes and loadings. Hot-dipped galvanising to BS EN IS0 1461 provides corrosion resistance. This range of covers provides a cost-effective solution for infrequent and slow-moving traffic situations. The raised surface pattern is designed to avoid water pooling.
Price range: £34.68 through £42.84
Description

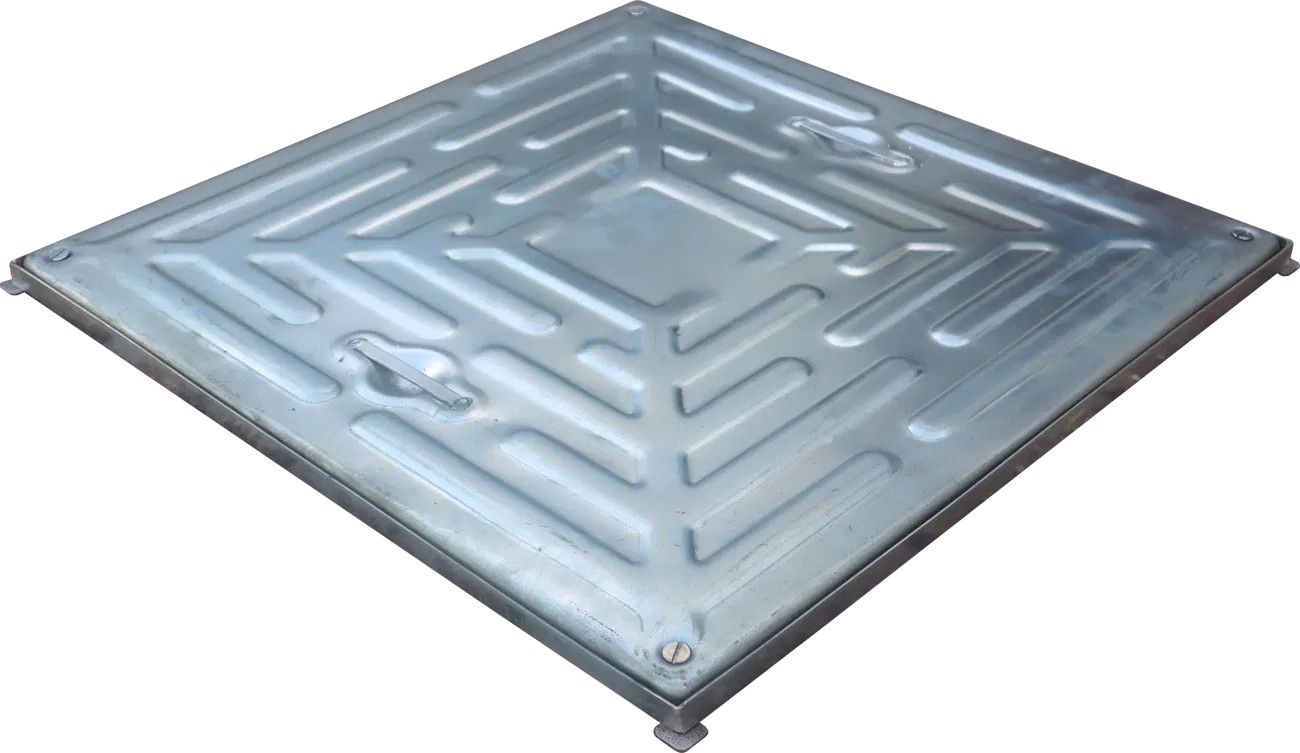

Wrekin Pressed Steel Solid Top Access Cover And Frame D/Seal Locked 10tn
The Wrekin C221M is a pressed steel solid top access cover and frame designed for light to medium duty applications where enhanced sealing is required. Manufactured from steel, it provides controlled access to underground services in environments subject to occasional vehicle loading. This Double Sealed Access Cover 10tn gross laden vehicle weight rating makes it suitable for commercial and service areas requiring improved containment without moving to a higher load class. The solid top design supports a continuous surface finish, while the double seal arrangement improves resistance to water ingress and odour escape at standard atmospheric pressure.
Specifications
| Primary material |
Steel
|
| Category |
Access cover
|
| Flanges |
4
|
| Gross laden vehicle weight |
10 tn
|
| Load duty |
Light / medium duty
|
| Slow moving wheel load |
2.5 tn
|
| Seal type |
Double seal
|
| Frame depth |
25 mm
|
| Wrekin loading code |
M
|
| Available sizes |
600 x 600, 600 x 450
|
| Product codes |
C221M/060060PSF, C221M/060045PSF
|
Pressed Corner Cover
The notch-less, die-drawn corners on our pressed tops provide a continuous surface seal, giving the following benefits:
- No sharp exposed edges.
- No cut exposed edges improve corrosion resistance.
- Better for avoiding water ingress and odour egress
Double Seal Products
The double seal configuration is achieved with an innovative design that utilises a captive ‘O’ ring, laterally compressed within a purpose-built channel featuring a lip, which is further enhanced by the uninterrupted edge of the cover.
An additional layer of sealing is provided by a supplementary gasket that is compressed vertically within the channel.
Together, these seals offer a superior barrier against the entry or escape of gases and liquids at standard atmospheric pressure.
Applications
Suitable for commercial premises, service yards, plant rooms, and areas with occasional vehicle access. Commonly specified where a double sealed access cover 10tn is required to improve containment while retaining a compact, low-profile design. Appropriate for installations where the Wrekin C221M provides enhanced sealing within a light to medium duty load category.
Contact us
For help confirming compatibility or selecting the correct product, contact our team via our contact page for expert advice and reliable UK-wide supply.
Additional information
| Sizes | 600 x 600mm, 600 x 450mm |
|---|
