Wrekin Pressed Steel Solid Top Access Cover And Frame 2.5tn
Our pressed mild steel access covers and frames are available in a comprehensive range of sizes and loadings. Hot-dipped galvanising to BS EN IS0 1461 provides corrosion resistance. This range of covers provides a cost-effective solution for infrequent and slow-moving traffic situations. The raised surface pattern is designed to avoid water pooling.
Price range: £10.20 through £20.40
Description

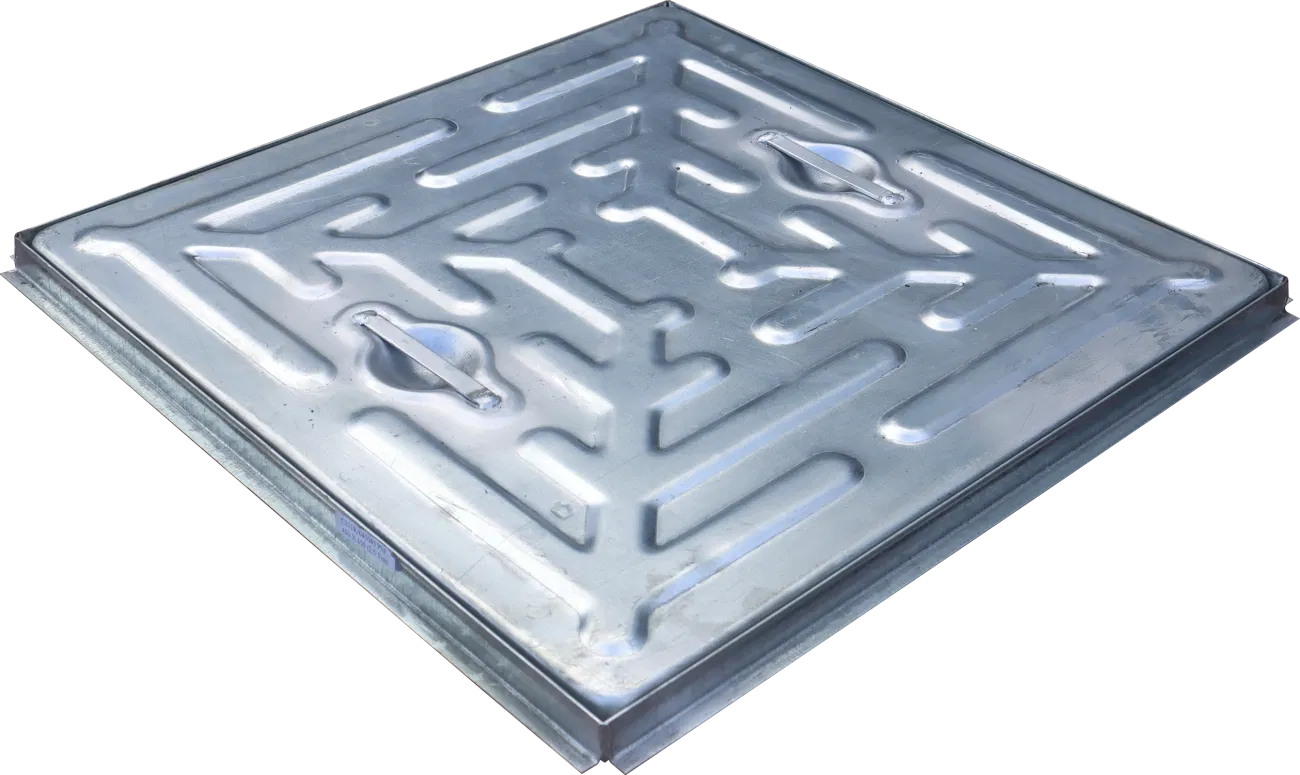

Wrekin Pressed Steel Solid Top Access Cover And Frame 2.5tn (Wrekin C211K)
The Wrekin C211K is a pressed steel solid top access cover and frame manufactured from pressed steel. It provides controlled access to underground services in environments with light loading. This access covers 2.5tn gross laden vehicle weight rating makes it suited to pedestrian areas where a compact, low-profile access solution is required. The solid top design supports a continuous surface finish, while the single seal arrangement offers basic protection against water ingress and odour release. It is suitable for internal and external locations where durability, simplicity, and ease of installation are important considerations.
Specifications
| Flanges |
4
|
| Gross laden vehicle weight |
2.5 tn
|
| Load duty |
Pedestrian
|
| Seal type |
Single seal
|
| Available sizes |
300 x 300, 450 x 450, 600 x 450, 600 x 600
|
| Product codes |
C211K/030030PSF, C211K/045045PSF, C211K/060045PSF, C211K/060060PSF
|
Pressed Corner Cover
The notch-less, die-drawn corners on our pressed tops provide a continuous surface seal, giving the following benefits:
- No sharp exposed edges.
- No cut exposed edges improve corrosion resistance.
- Better for avoiding water ingress and odour egress
Single seal products
The design of our single seal on these solid top access covers is achieved through an uninterrupted labyrinth between the cover and the frame.
By applying grease to the labyrinth of the frame, the seal’s performance improves, providing a mild to moderate defence against the release of gases and the infiltration of water at standard atmospheric pressure.
For increased sealing capacity our double sealed version should be considered.
Applications
The Wrekin C211K is suitable for pedestrian zones, plant rooms, service corridors, and internal floor areas. Commonly used in commercial buildings, public spaces, and landscaped environments where light loading is expected. Appropriate for locations requiring a shallow access cover with a solid top and single seal, where regular inspection access is required without exposure to vehicular traffic.
Contact Us
For help confirming compatibility or selecting the correct product, contact our team via our contact page for expert advice and reliable UK-wide supply.
Additional information
| Sizes | 300 x 300mm, 450 x 450mm, 600 x 600mm, 600 x 450mm |
|---|
