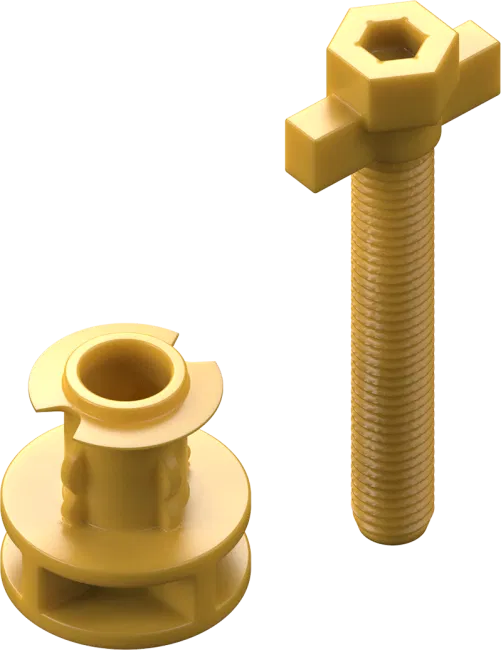

Wrekin ScrewLift Universal Levelling Pack
ScrewLift is an adjustable frame levelling system, enabling micro adjustments to match ductile iron manhole covers and gully grating frames with their surrounds. It enables high-quality, consistent installations that resist early-life failure, extending the life of ironwork.
£10.20 excl VAT £10.20
Description
Wrekin ScrewLift Universal Levelling Pack
The Wrekin ScrewLift is a universal ironwork frame levelling system designed to provide accurate and repeatable frame installation. It maintains a minimum 15 mm bedding thickness beneath the flange, supporting structural integrity and long-term durability of installed ironwork. Supplied as a complete universal levelling pack of 20, ScrewLift is suitable for both retrofit and factory-fitted applications, helping installers achieve consistent results while simplifying compliance with current installation guidance.
Specifications
| Product description |
Universal ironwork frame levelling kit
|
| Product code |
FS/SCREWLIFT
|
| Primary function |
Ironwork frame levelling system
|
| Minimum bedding thickness |
15 mm
|
| Adjustment method |
Top-side adjustment using simple tools
|
| Pack contents |
4 base units, 4 levelling screws, 1 string line
|
Key design features
- Minimum bedding control – Maintains a consistent 15 mm bedding thickness beneath the frame flange to support structural performance and durability.
- Top-down adjustment – Levelling screws are adjusted from the top of the frame using simple tools, allowing fine and accurate alignment after placement.
- Even load distribution – Base units are positioned near each corner of the frame to help distribute loads evenly into the bedding mortar.
- Simple installation – Components are installed with a firm push or light mallet, reducing installation time and manual handling.
- Installation compliance support – Designed to simplify compliance with CD 534 and BS EN 124 installation guidance when used with suitable bedding mortars.
- Warranty integration – Forms a key part of the Wrekin ironwork warranty system.
Applications
Suitable for use with ironwork frame installations where accurate levelling and consistent bedding depth are required. Commonly used on highways, carriageways, and infrastructure projects to support compliant installation of manhole covers and frames. The Wrekin ScrewLift provides a controlled levelling solution where a Universal Levelling Pack is required to reduce installation variability and long-term maintenance issues.
Contact us
For help confirming compatibility contact the team for technical advice and reliable UK-wide supply.
